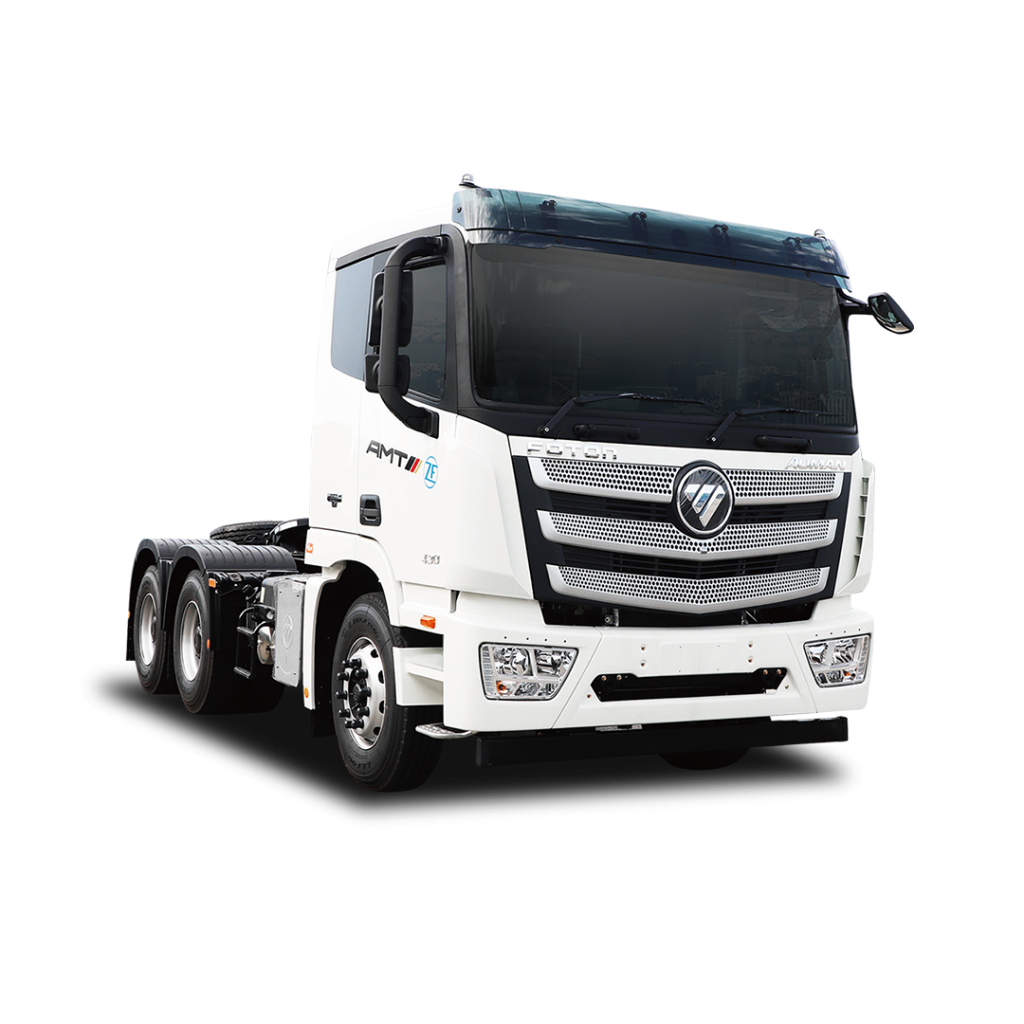

FOTON AUMAN
Foton Auman merupakan tracktor head heavy-duty yang dirancang untuk menghadapi kebutuhan transportasi logistik berskala besar. Dengan performa yang bertenaga, konstruksi sasis yang kokoh, serta teknologi modern, Auman siap mendukung operasional angkutan jarak jauh maupun distribusi beban berat secara aman, efisien, dan andal di berbagai kondisi jalan.
Spesifikasi Teknis
Main Parameter
- Wheelbase (mm) : 3.300 + 1.350
- Chassis Dimensions (L×W×H) (mm) : 6.950 × 2.490 × 3.074
- Curb Weight (kg) : 9.800
- Payload (kg) : 45.200
- GCW (kg) : 55.000
- Maximum Speed (km/h) : 97(3,86) / 93(4,03) / 89(4,2)
- Maximum Climbing Capacity % (full load) : ≥20
Engine
- Model : Cummins ISGe4-380
- Emission Standard : Euro IV
- Displacement (mL) : 11.800
- Rated Power (ps/rpm) : 430 / 1.900
- Maximum Output Torque (Nm/rpm) : 2.200 / 1.000 – 1.300
Gearbox
- Model : ZF 12TX2420TD
- Speed Control Mode : Automatic
Front Axle
- Rated Load : 7T
- Brake Type : Drum
Rear Axle
- Model / Axle Housing Type : Double reduction / Casting
- Rated Load / Speed Ratio : 10T / 4.20
- Brake Type : Drum
Brake
- Service Brake : Double return air pressure drum
- Parking Brake : Spring energy storage brakes + air brake
- Auxiliary Brake : Engine Brake + Exhaust Brake
- ABS : Yes
Tire
- Specification : 315/80R22.5 18PR
- Quantity : 10 + 1
Fuel Tank
- Specification and Material : 700L
Other Configurations
- Cab Suspension : Full floating airbag
- Cab Lifting : Electric control
- Seat Type : Airbag seats
- Rearview Mirror : Electric control
- AC : Standard
